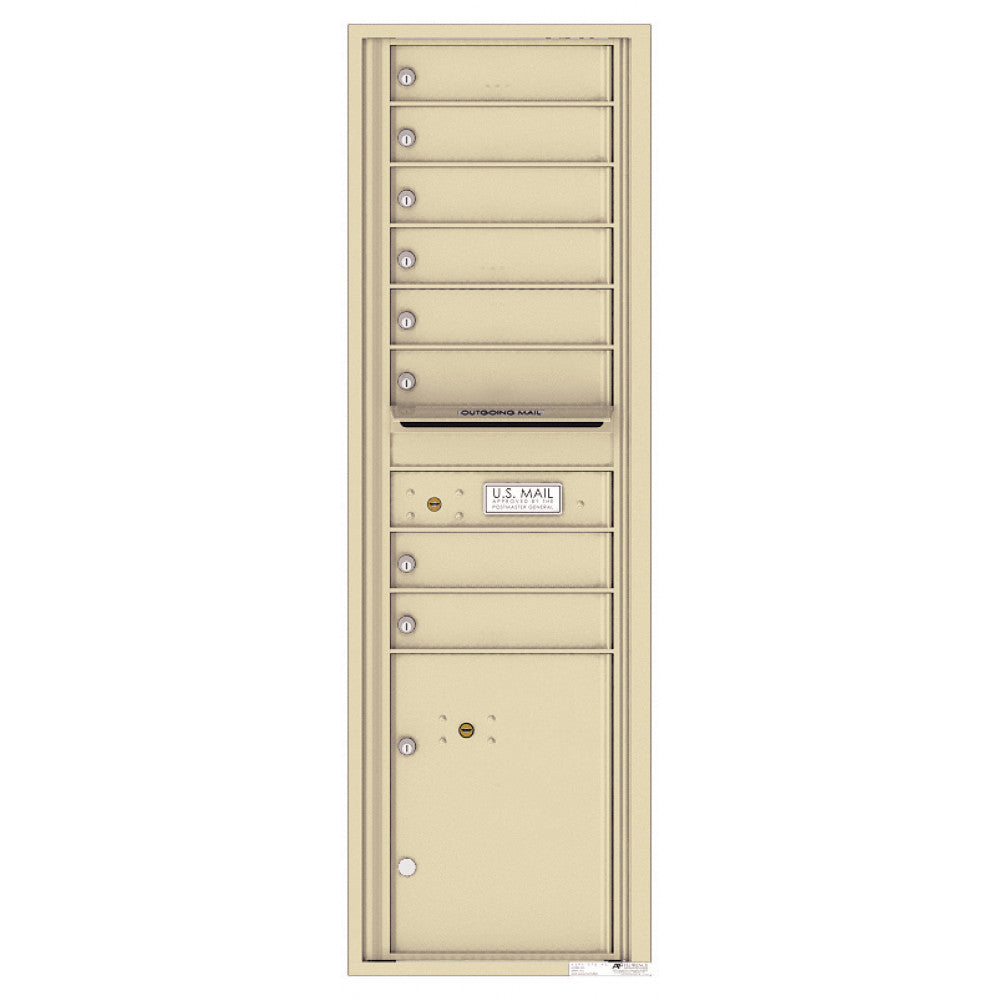

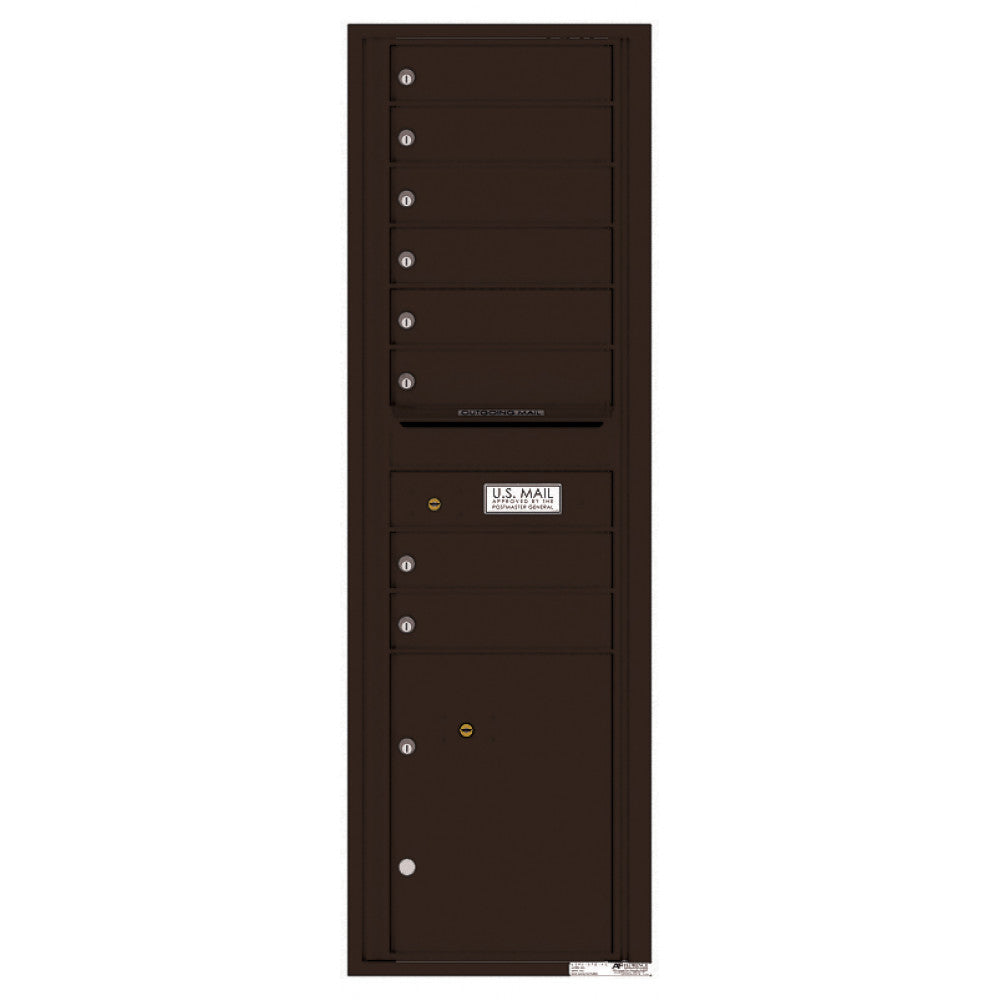

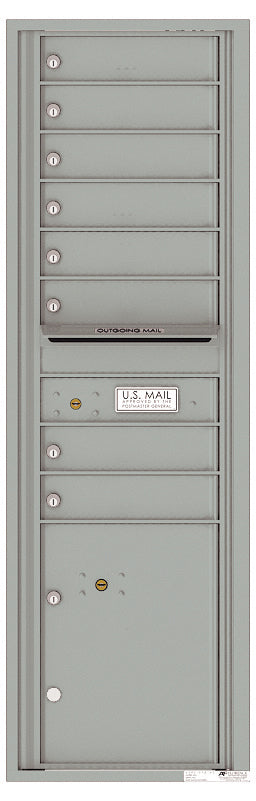

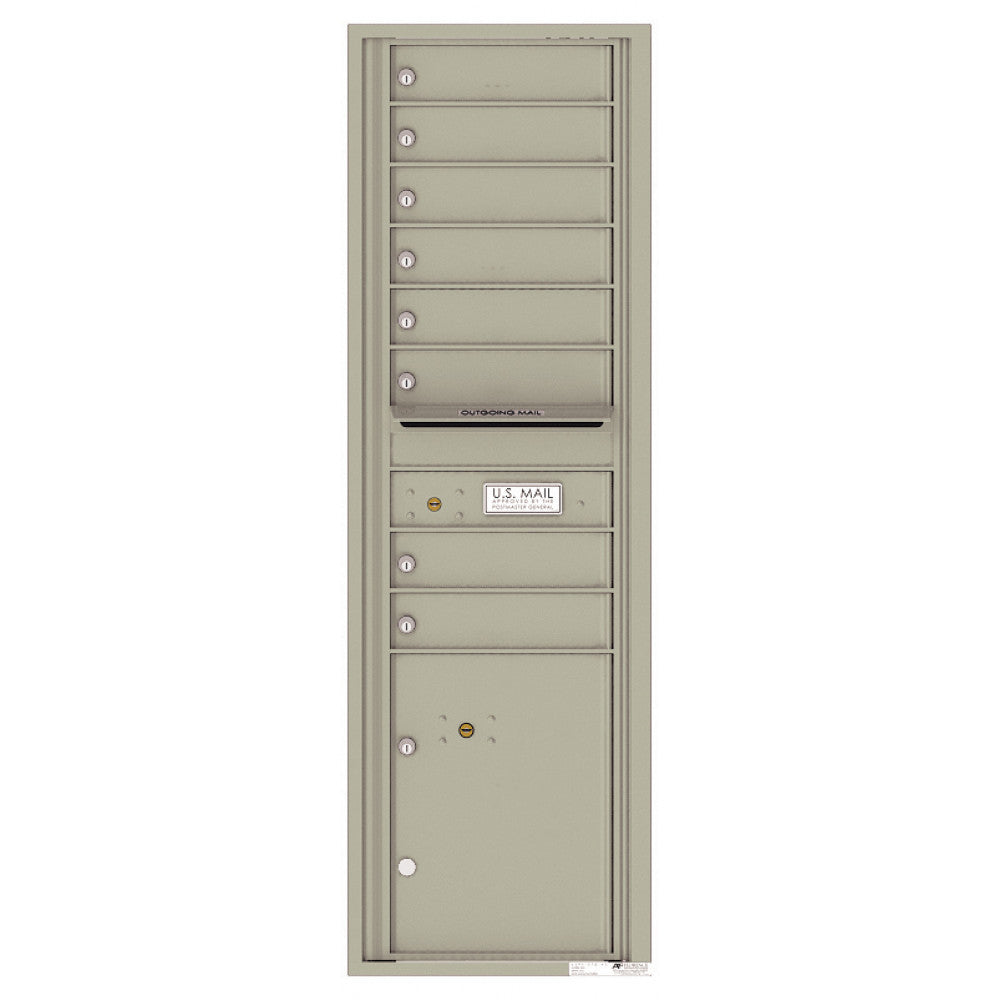

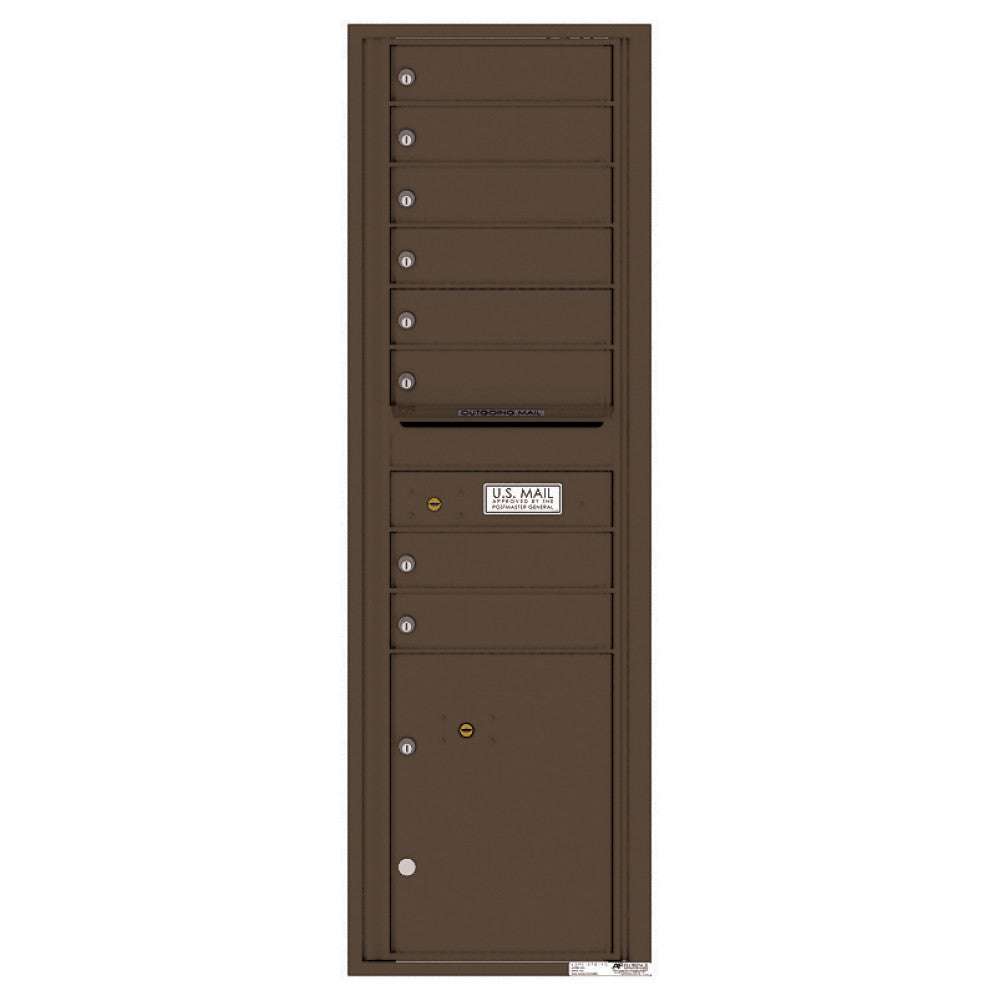

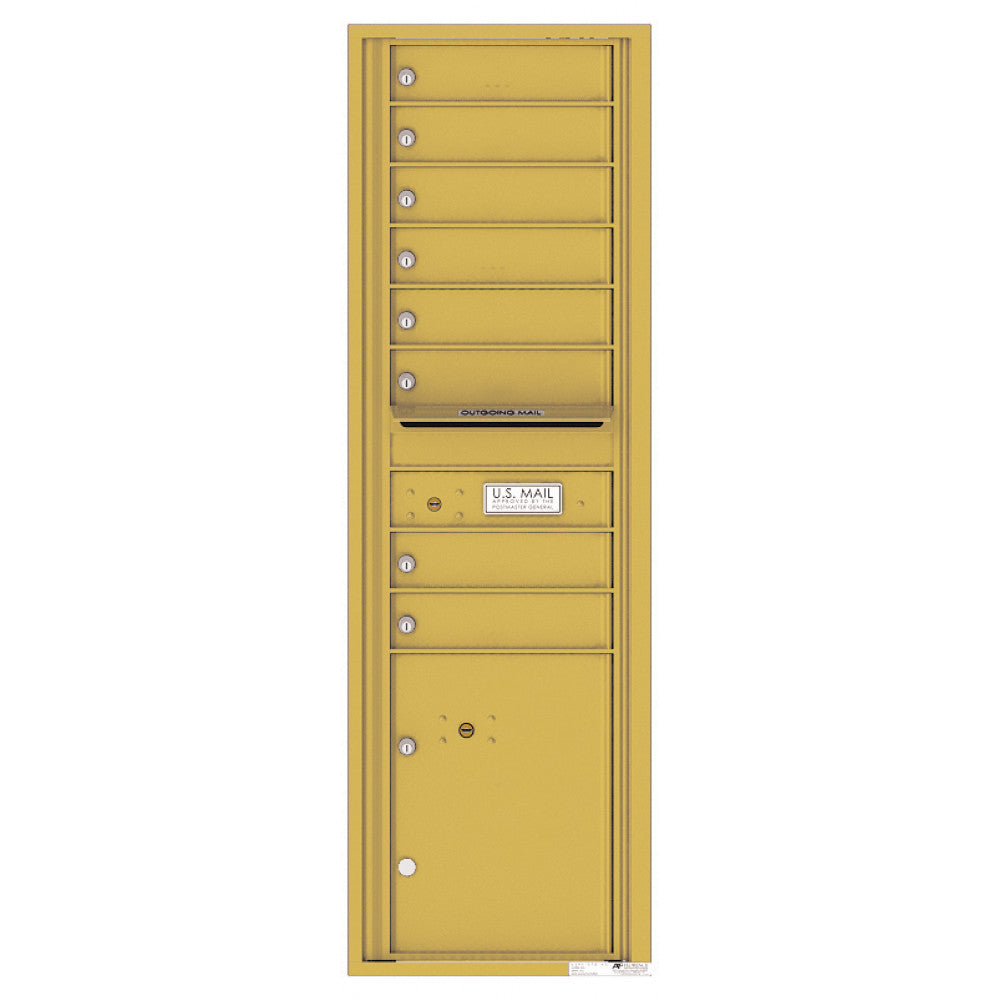

8 Tenant Doors with 1 Parcel Locker and Outgoing Mail Compartment - 4C Wall Mount 15-High Mailboxes - 4C15S-08

4C15S-08 Drawing | 4C Mailbox Installation Manual

Florence 4C mailboxes feature tenant compartments, package lockers, and one outgoing mail compartment. USPS-approved and compliant with STD-4C regulations, these mailboxes are designed for new construction and major renovations. They also serve as an excellent choice for private delivery needs.

Features:

• Superior strength, corrosion resistance and exceptional durability for indoor as well as outdoor installations.

• USPS Approved to STD-4C regulations required for all new construction and major renovation projects.

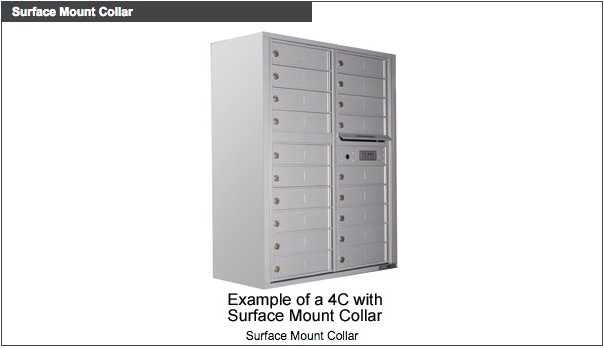

• 4C standard mailboxes are fully recessed for in-wall mounting. Surface-mount collar and kiosk kits are available at an additional charge.

• USPS regulations require a minimum of one package locker for every ten tenant compartments and one outgoing mail slot per unit.

• Factory-installed integral trim surrounds the mailbox and a unique MUCK (multi-unit connector kit) is included for easy installation of multiple 4C mailboxes.

• A minimum wall depth of 17" is required for fully-recessed 4C mailboxes.

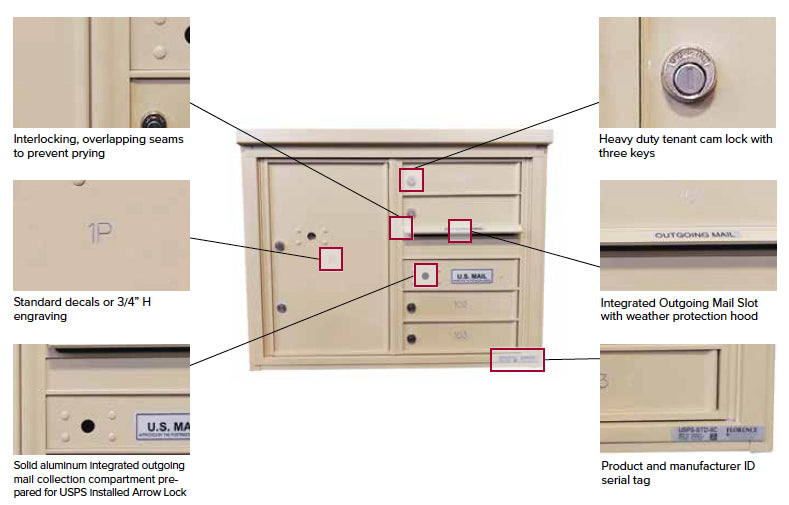

• Tenant Doors: Tenant doors include heavy-duty, dustproof cam locks, each with three (3) keys.

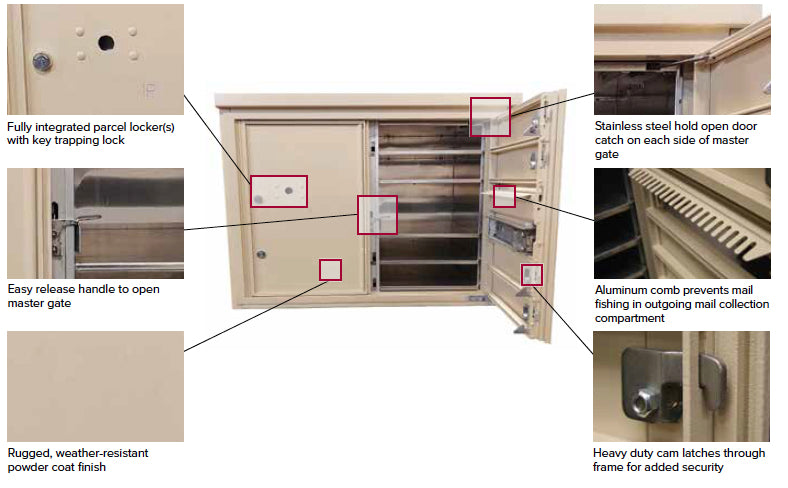

• Package Lockers: Heavy-duty dust proof lock with three (3) keys which secures the collection bin until items are picked up.

• Outgoing Mail: The outgoing mail compartment (with slot), anti-fish comb for security, and protective hood are above the USPS access door. This is for convenient outgoing mail collection.

• Finish or Material: Heavy gauge aluminum construction

Dimensions:

• Unit Size: 54-3/4"H x 31-9/16"W x 17"D

• Total Doors: 8 Tenant Compartments, 1 Parcel Locker

• Tenant Compartment Sizes: 3"H x 12"W x 15"D

• Package (Parcel) Locker: 17"H x 12"W x 15"D

• Outgoing Mail Compartment: 3"H x 12"W x 15"D

• Master Collection: 3"H x 12"W x 15"D
