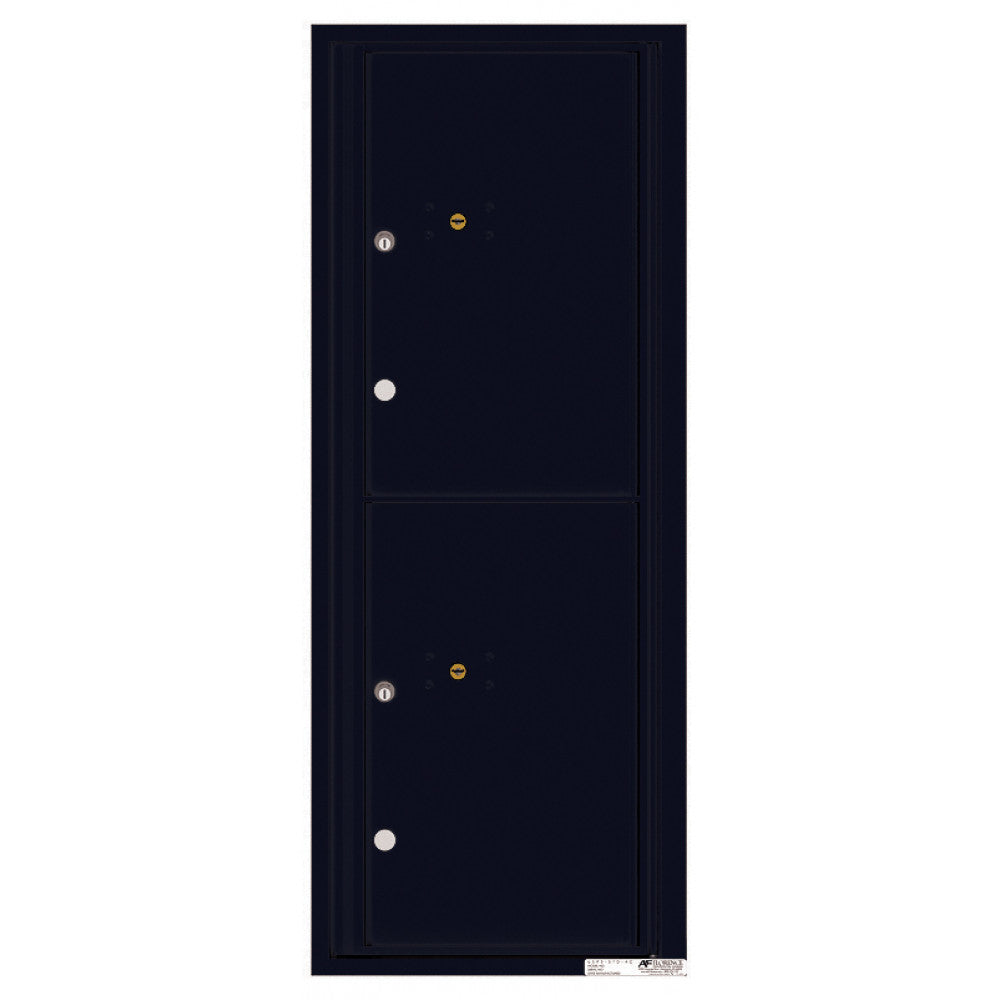

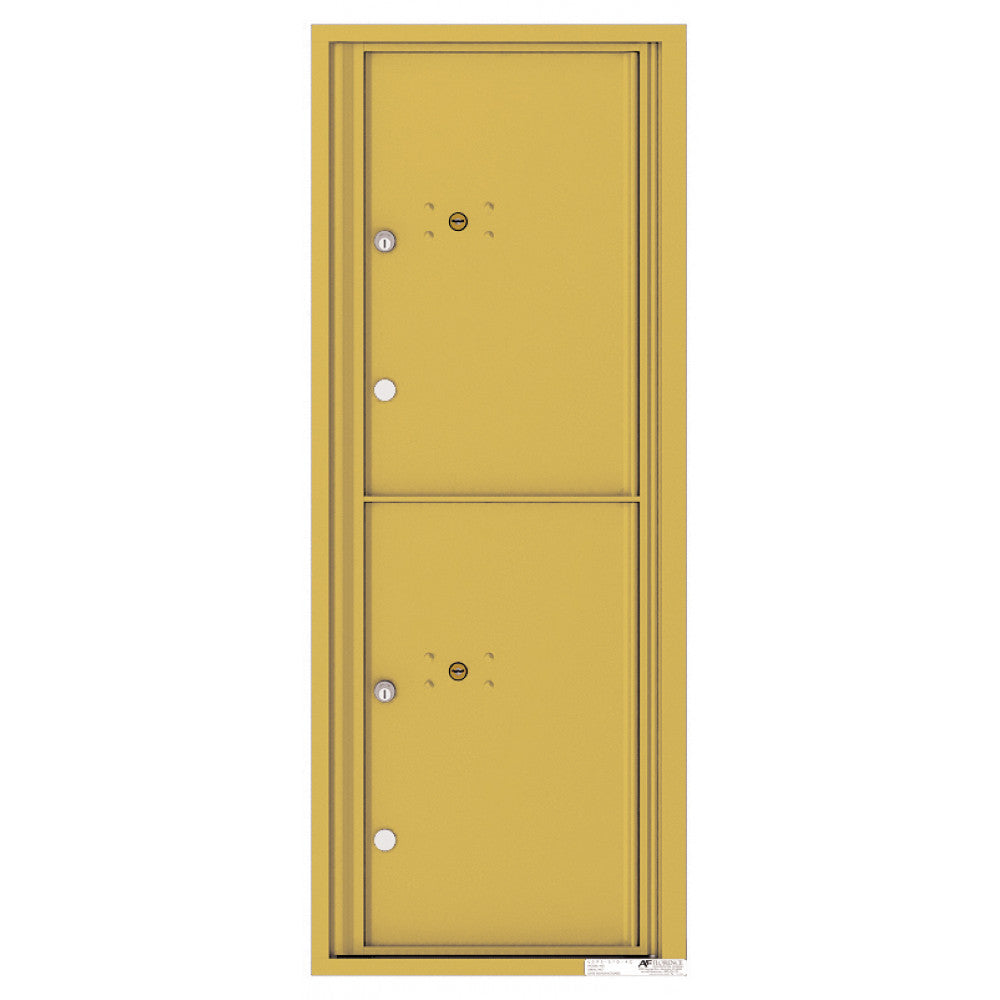

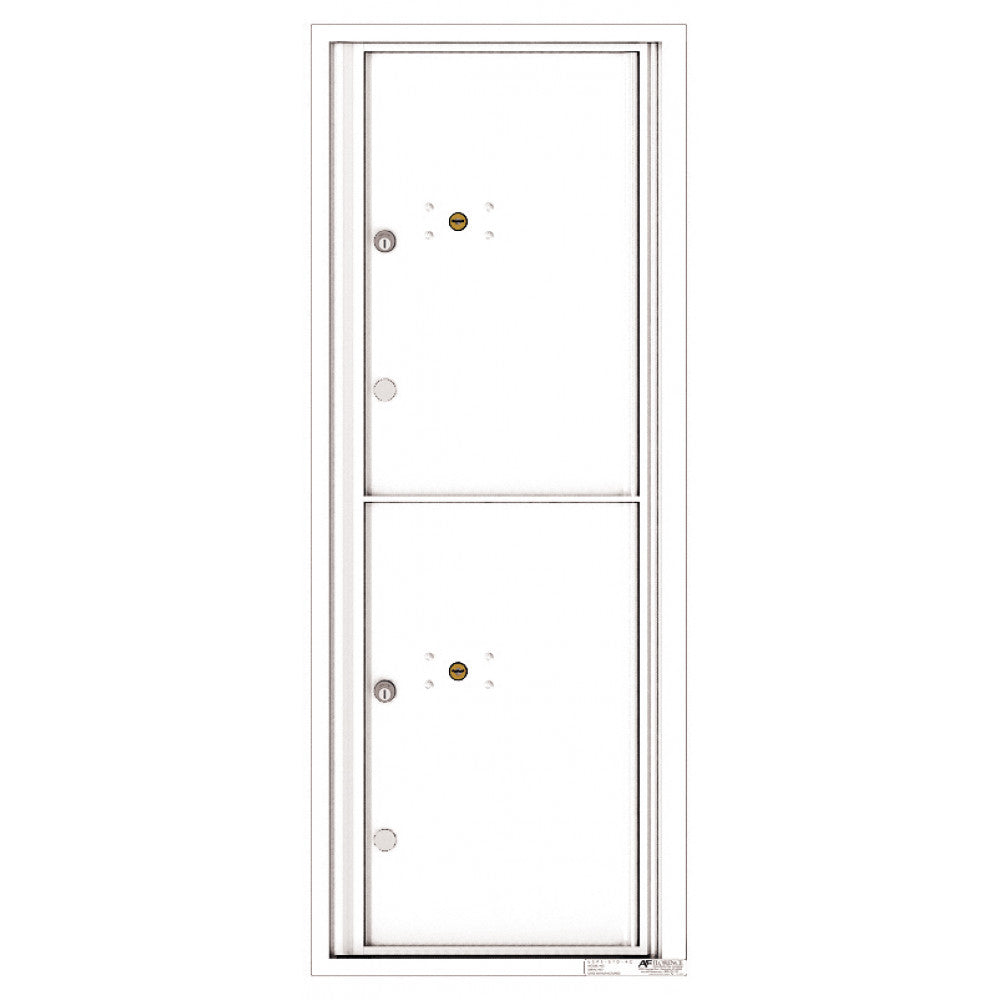

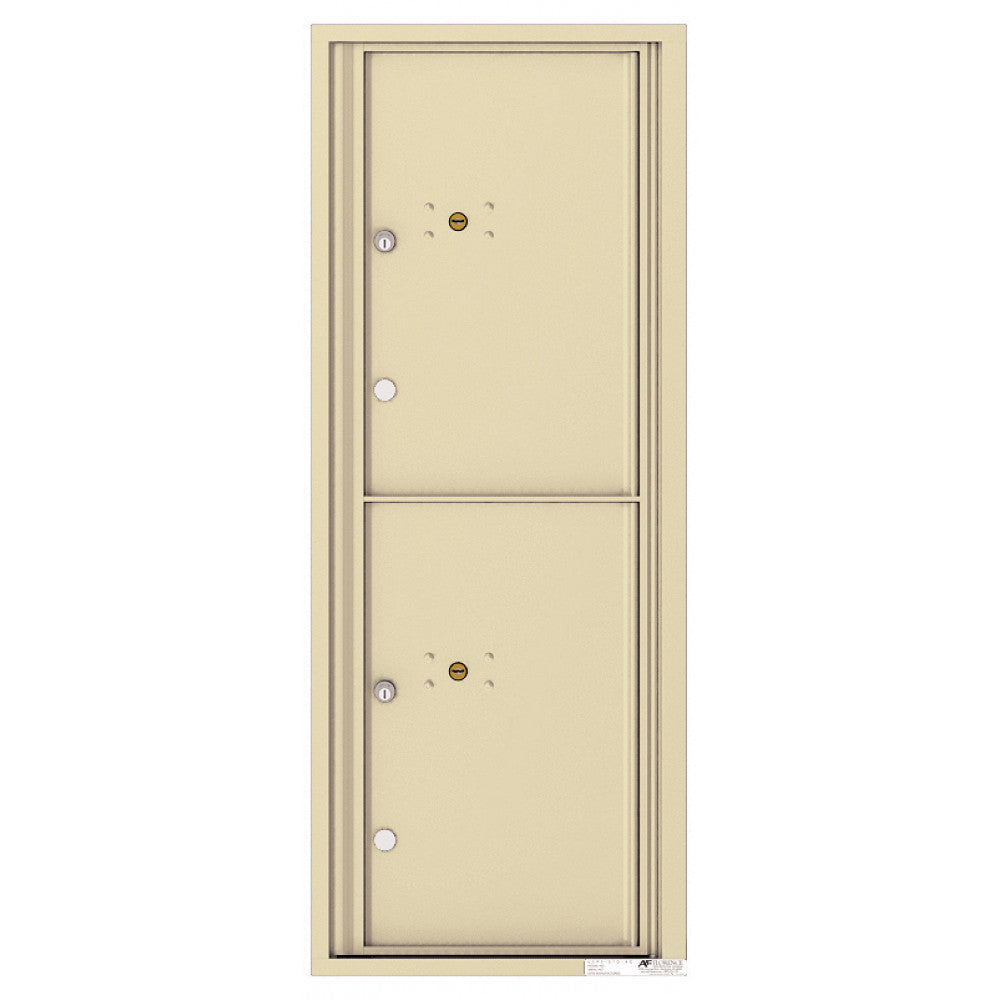

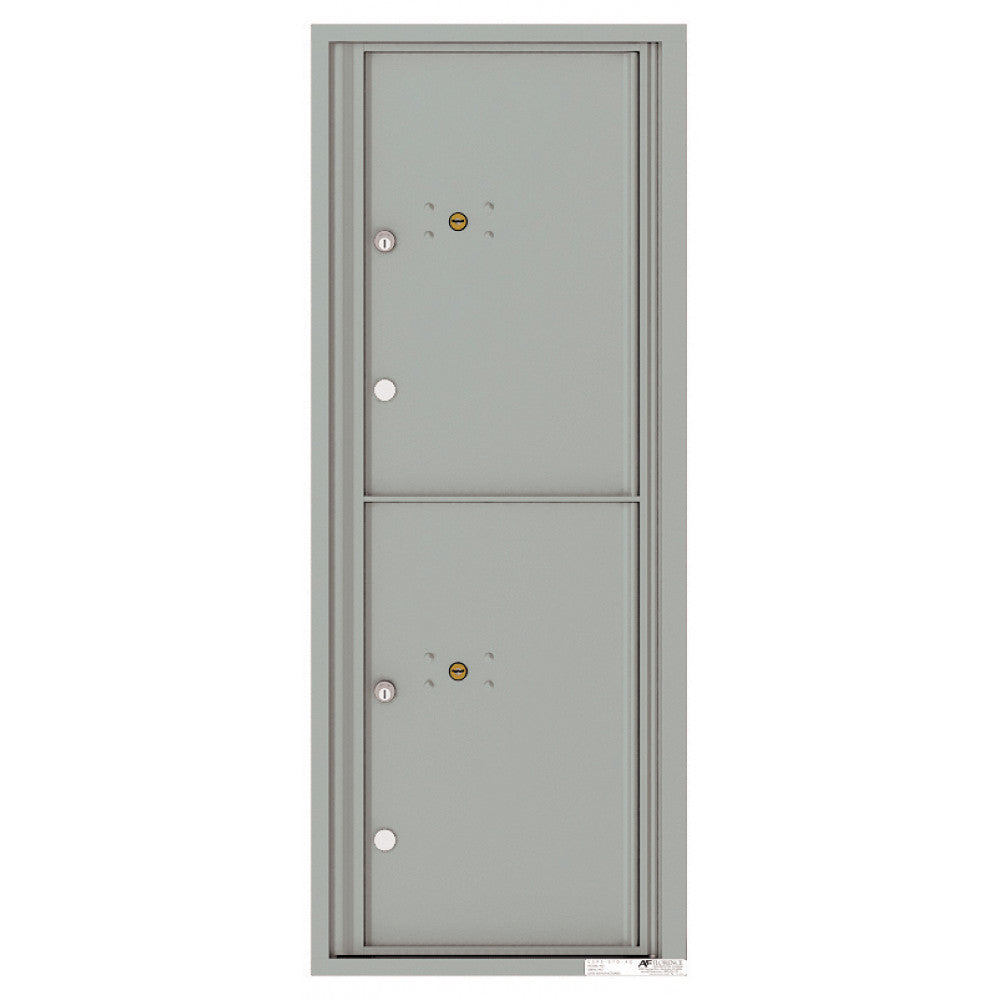

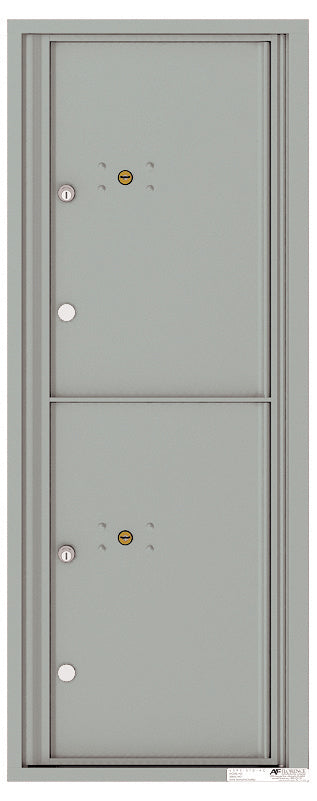

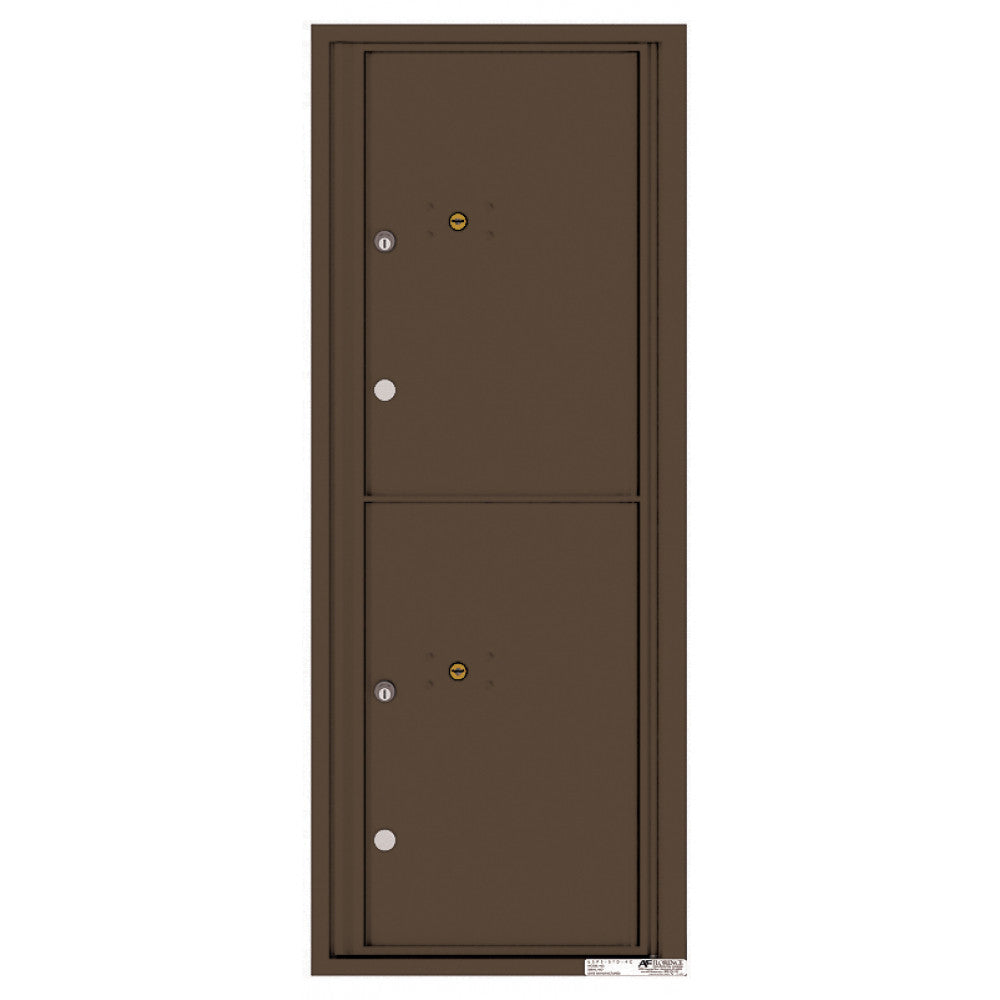

2 Parcel Doors Unit - 4C Wall Mount 12-High - 4C12S-2P

4C12S-2P Drawing | 4C Mailbox Installation Manual

Florence 4C parcel lockers are designed to match 4C mailbox suites. They provide additional package delivery options for your residents.

Features:

• Superior strength, corrosion resistance and exceptional durability for indoor as well as outdoor installations.

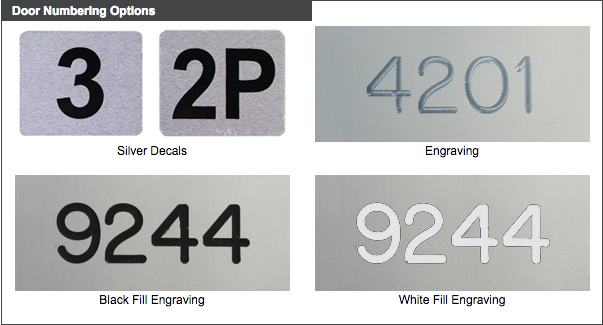

• Silver adhesive decals with black numbers are included for door identification

• USPS Approved to STD-4C regulations required for all new construction and major renovation projects.

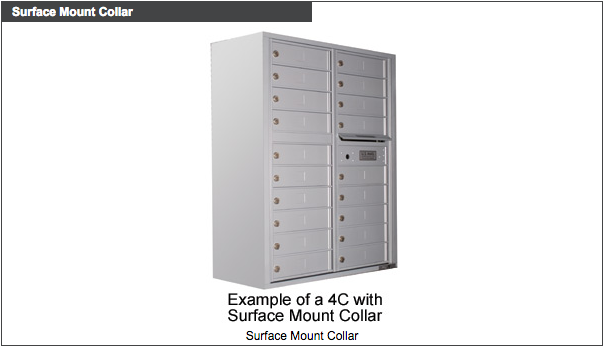

• 4C standard mailboxes are fully recessed for in-wall mounting. Surface-mount collar and kiosk kits are available at an additional charge.

• USPS regulations require a minimum of one package locker for every ten tenant compartments and one outgoing mail slot per unit.

• Factory-installed integral trim surrounds the mailbox and a unique MUCK (multi-unit connector kit) is included for easy installation of multiple 4C mailboxes.

• A minimum wall depth of 17" is required for fully-recessed 4C mailboxes.

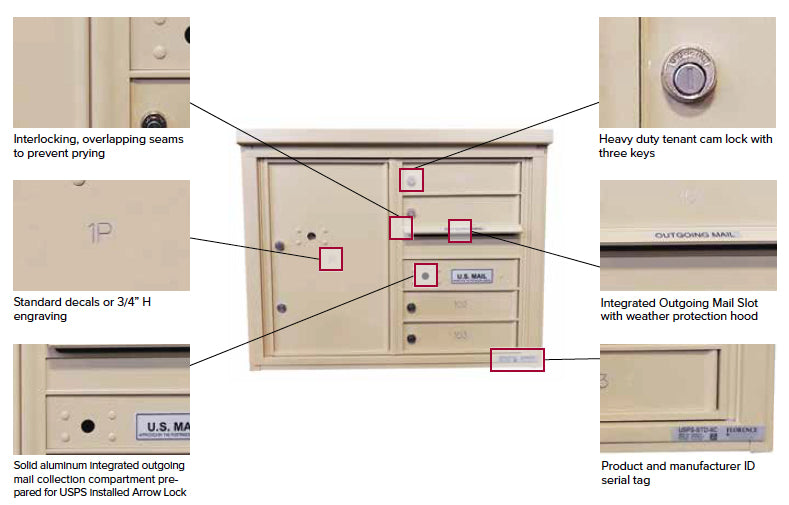

• Tenant Doors: Tenant doors include heavy-duty, dustproof cam locks, each with three (3) keys.

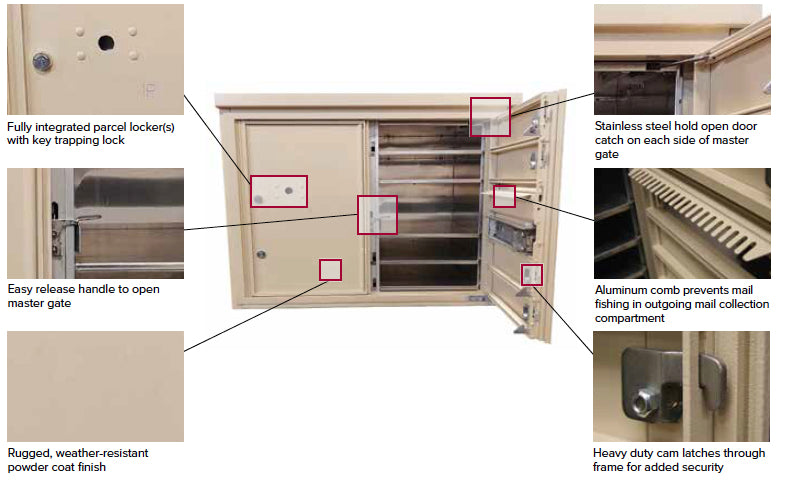

• Includes parcel locker door(s) with unique double-locking mechanism design for added mail package security

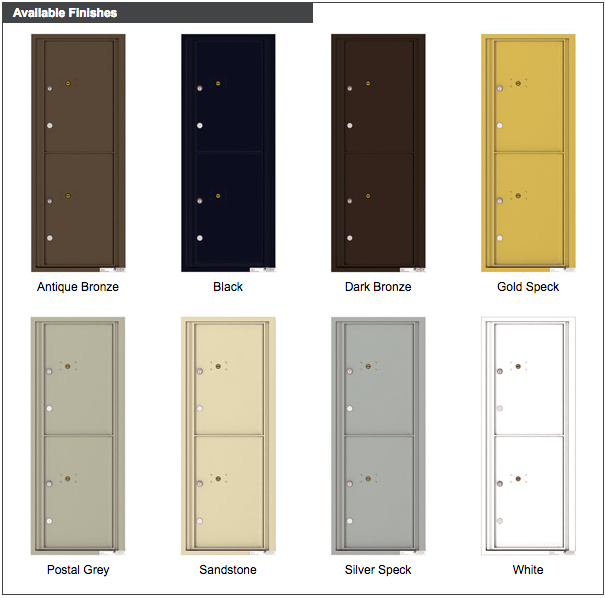

• Finish or Material: Heavy gauge aluminum construction

Dimensions:

• Unit Size: 44-1/4"H x 17-1/2"W x 17"D

• Total Doors: 2 Parcel Lockers

• 2 Package (Parcel) Locker Sizes: 20-1/2"H x 12"W x 15"D
